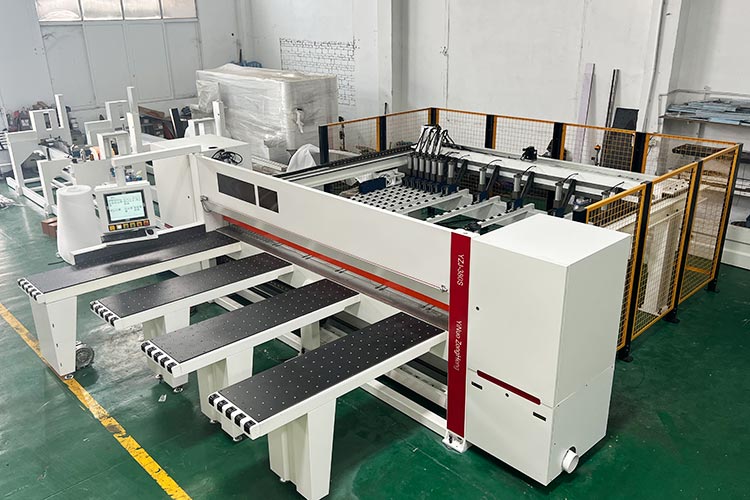

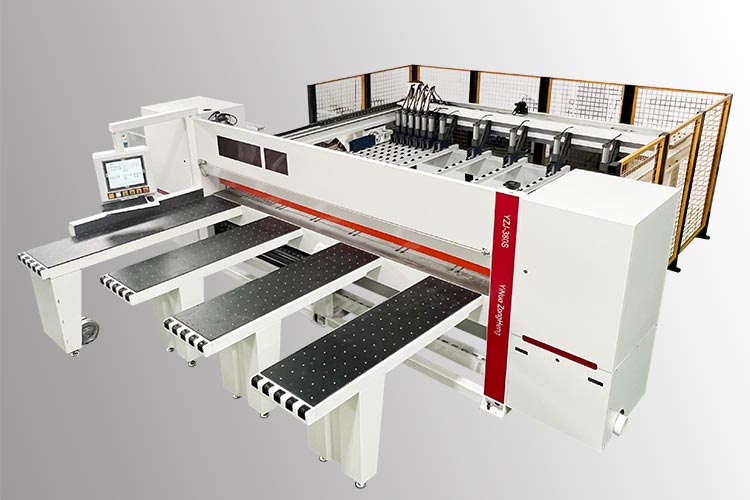

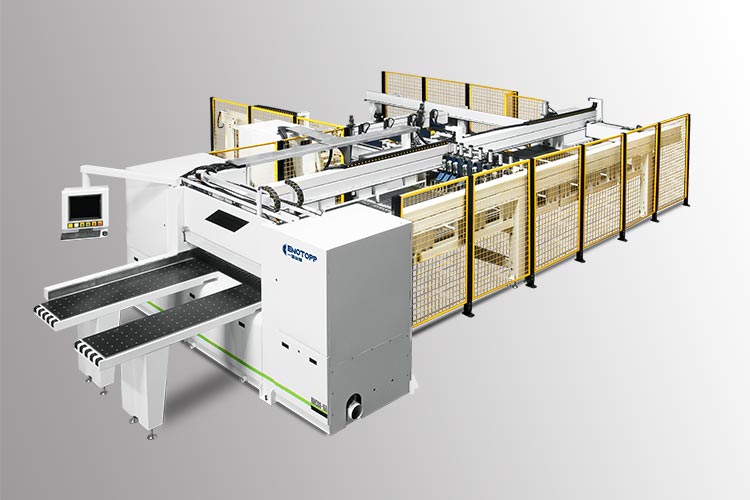

2023 New Generation Full Servo Full CNC Computer Beam Saw for sale

5/5

Brand: ENOTOPP

Model: YZJ-380S

Payment Terms: T/T/Visa/Mastercard

Category: CNC panel saw, computer beam saw

After-sale Service: Free professional machine operation training.

Supply Ability: 30 Sets per Month

CNC panel saw video

Computer beam saw video

Description

2023 New Generation Full Servo Full CNC Computer Beam Saw is the latest research and development of 2023. The newly developed saw is fully digital controlled and is equipped with full servo. It’s fully digital, faster, easy-operated, higher efficient and smarter. This is an innovation and upgrade of the panel saws, and the technology is leading in the woodworking industry.

ENOTOPP is the leading brand of domestic cutting saws. The innovative design can be compared with “Made in Germany”, our products could support your factory to be more competitive.

Features

  • The racks are all in finishing structure, all to the ground. Stable without deformation, no vibration when sawing, ensuring perfect sawing effect.
  • The main frame adopts a precision linear guide rail structure with high precision.
  • The left and right beams of the manipulator are welded into an I-shaped steel structure with thick steel plates. The movement adopts precision linear guide rails, which move smoothly and with high precision.

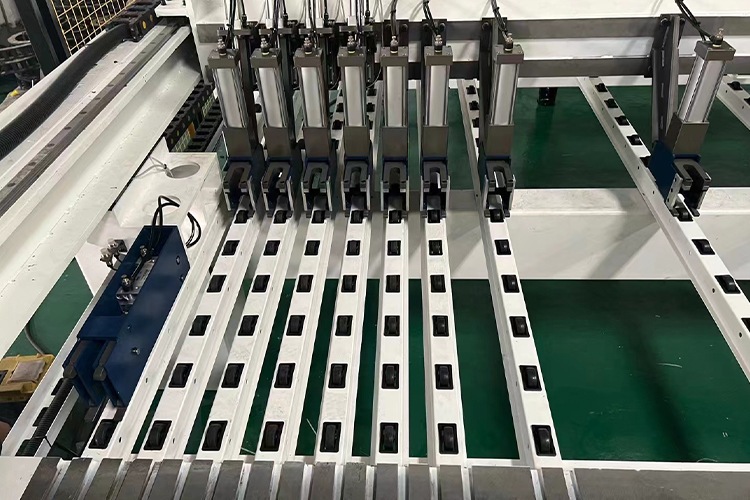

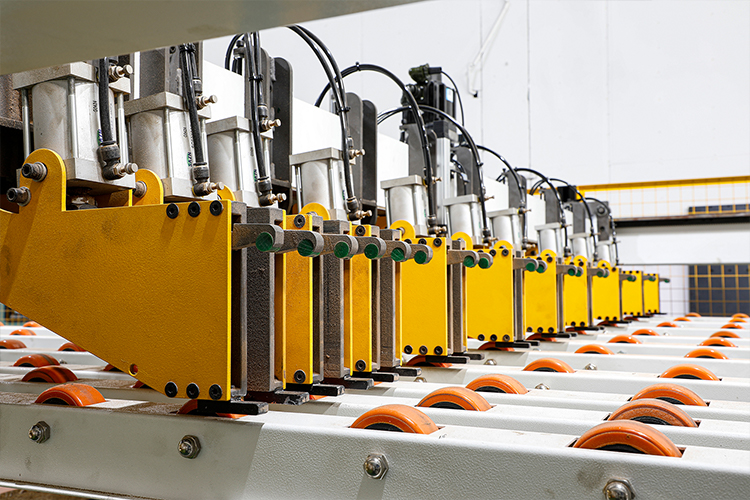

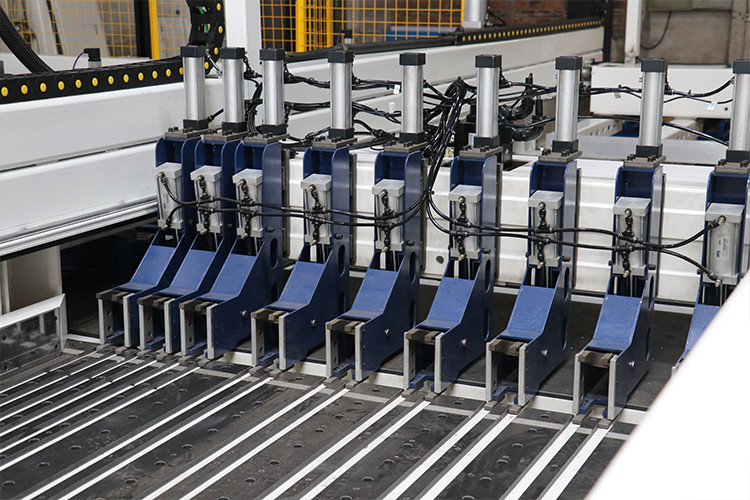

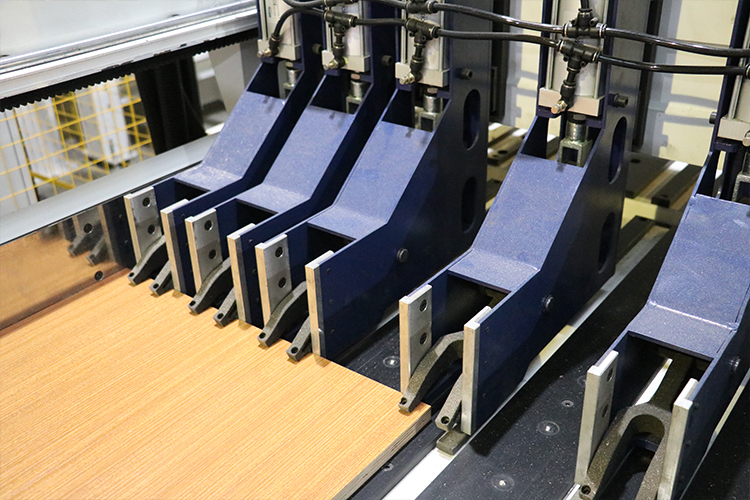

  • The clamping hand adopts a flat clamp, which has a strong grip and does not hurt the board.
  • The table of the main frame is directly opened with the hand groove, no need to lay the table panel, no wear, and high precision, and the thick steel plate is directly welded
  • The motors of the large and small saw blades all use servo motors, which are quite energy-saving, low-noise, and very stable. The motors only start when sawing and stop when they are idling.
  • The left and right, height adjustment of the small saw is designed to be automatic, convenient, and quick.
  • The lifting and lowering of the large saw is also lifted by a servo motor, and it is precisely positioned according to the thickness of the plate to achieve the best sawing effect, especially suitable for slotting in arc technology.
  • It has a code-scanning function, which is suitable for order replenishment.
  • It has the function of returning to the square to solve the problem of plate deformation.
  • With this equipment, edge banding machine pre-milling can be removed for subsequent production, which solves many process problems in back-end production and saves costs.
  • An optional automatic labeling function is available.
  • The function of dual grippers can be selected to greatly increase the efficiency of cutting materials.

Parameters

ITEMS
YZJ-380
YZJ-330
YZJ-280

Panel length

3800mm

3300mm

2800mm

Panel thickness

100mm / 120mm (optional)

100mm / 120mm (optional)

100mm

Diameter of main saw blade

φ380-400mm

φ380-400mm

φ380-400mm

Inner hole of main saw blade

Φ75mm

Φ75mm

Φ75mm

Diameter of Auxiliary saw blade

Φ200mm

Φ200mm

Φ200mm

Inner hole of Auxiliary saw blade

Φ50

Φ50

Φ50

Saw seat cutting speed

0-80m/min

0-80m/min

0-80m/min

Saw seat reverse speed

0-100m/min

0-100m/min

0-100m/min

Main saw drive motor

15kw / 18.5kw (optional)

15kw / 18.5kw (optional)

15kw

Auxiliary saw drive motor

2.2kw

2.2kw

2.2kw

Saw seat servo drive

1.3kw high torque servo

1.3kw high torque servo

1.3kw high torque servo

Feeding servo motor

1.3kw high torque servo

1.3kw high torque servo

1.3kw high torque servo

High pressure blower motor

2.2kw

2.2kw

2.2kw

Automatic feeding speed

0-90m/min

0-90m/min

0-90m/min

Working table height

920mm

920mm

920mm

Total power

22kw

22kw

22kw

Working voltage

380V/50HZ

380V/50HZ

380V/50HZ

Working pressure

0.6-0.8Mpa

0.6-0.8Mpa

0.6-0.8Mpa

Machine net weight

About 5800kg

About 5800kg

About 5800kg

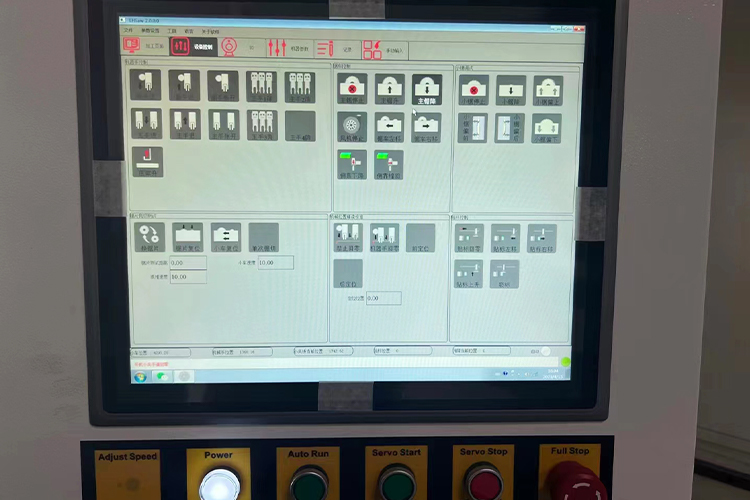

CNC panel saw machine details

Applications

There are two ways of panel sizing generally used in the timber industry, the CNC nesting machine and computer beam saws. The CNC panel saws are controlled by an industrial computer, which is quite advanced and easy to operate for the users. The computer beam saws are used to process straight and batch wood panels and sheets. It has more precise cutting with a smooth surface. ENOTOPP has over 12 years of experience in designing and manufacturing panel saws, and served customers globally. The computer beam saws have been widely used for making wooden furniture in timber plants and factories.

Samples

Related Newly developed products

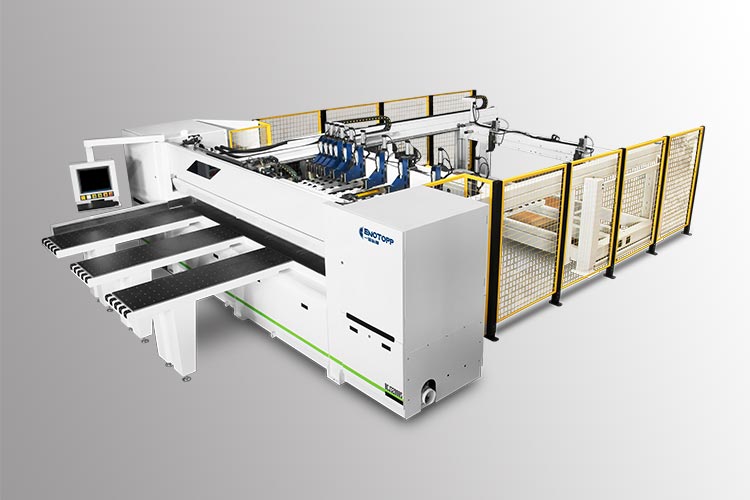

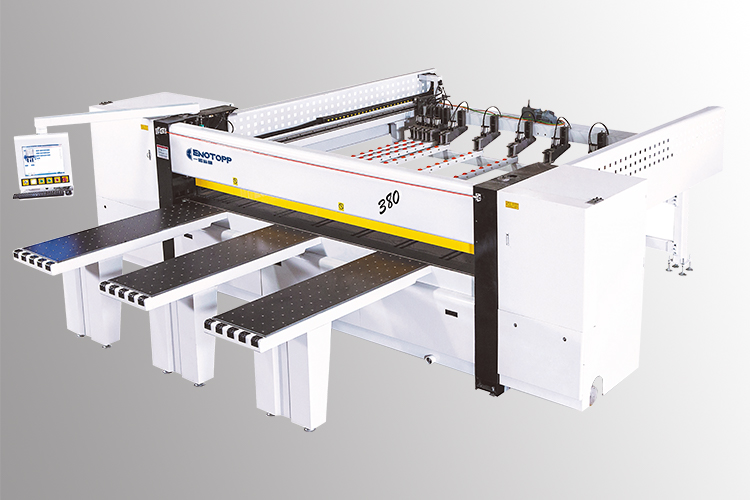

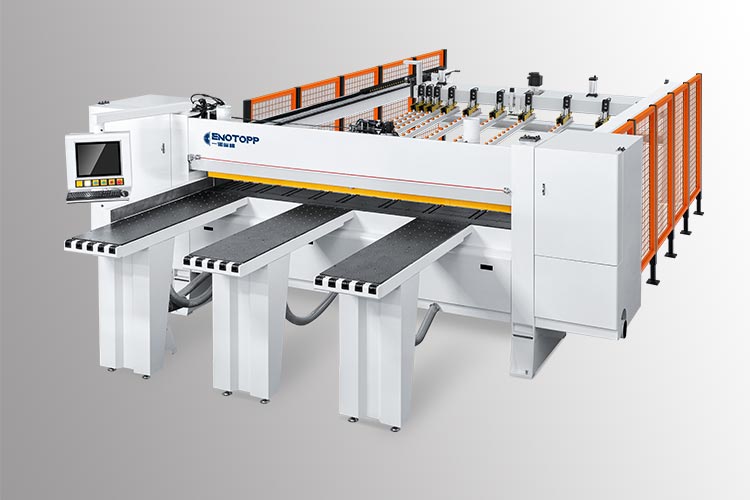

Related computer beam saws
