ENOTOPP 380 High Speed Intelligent Computer Beam Saw for Wood Panel Cutting
Brand: ENOTOPP
Model: YZJ-380
Payment Terms: T/T/Visa/Mastercard
Category: CNC panel saw, computer beam saw
After-sale Service: Free professional machine operation training.
Supply Ability: 30 Sets per Month
CNC panel saw video
Computer beam saw video
Description

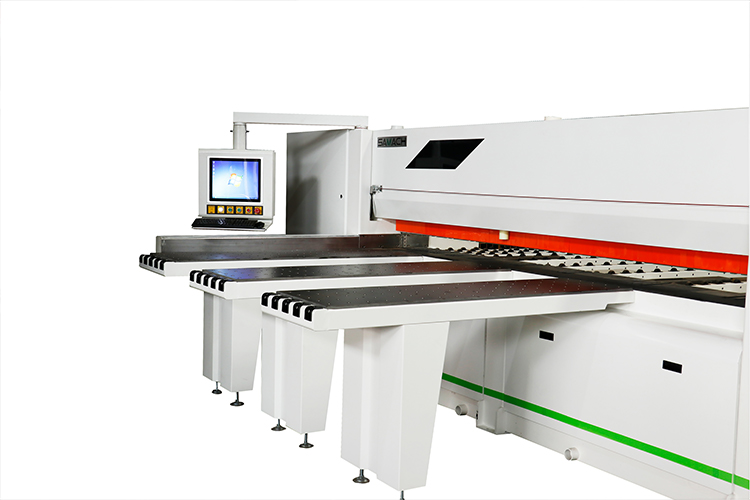

ENOTOPP 380 High-Speed Intelligent Computer Beam Saw is an innovative, powerful, high-performance panel cutting saw for high-volume producers. Size advantage and large-volume plate cutting are the notable features of YZJ380.
The YZJ380 boasts innovative technology and a uniquely rugged design. High-volume plate-cutting performance is ensured.
Features
- Using advanced technology, it can stand the test of long-term operation
- German-type saw shaft, large and small saws with separate structures, overall trolley
- Extended floating table, convenient and easy for the operator to move the plate and save manpower, using a high-pressure fan
- Separate structure for big and small saws, independent high-precision linear guide rail for lifting, quick disassembly of saw blades, trolley servo motor drive

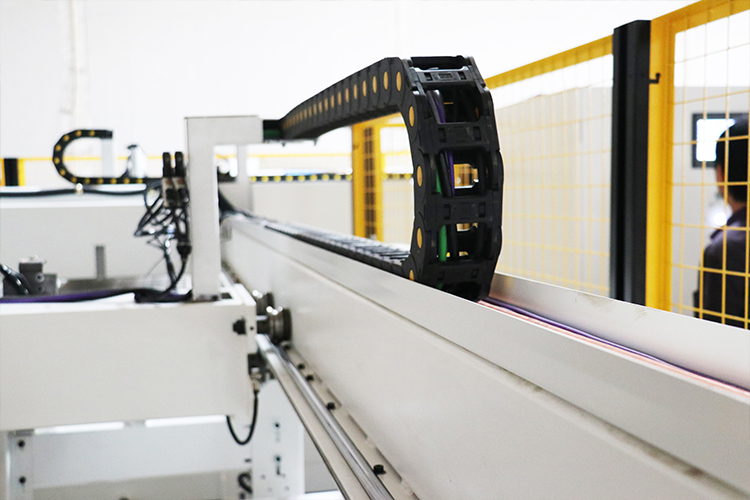

- The guide rails are installed parallel to the outside, no dust, and the operation is fast and stable

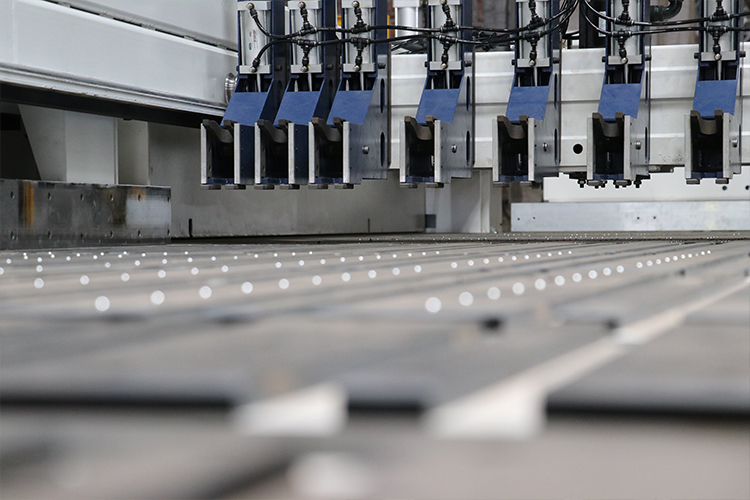

- Double-claw manipulator, small material is more stable, double-bearing feeding wheel (heavy load)
Parameters
ITEMS |
YZJ-380 |
YZJ-330 |
YZJ-280 |
|---|---|---|---|
|
Panel length |
3800mm |
3300mm |
2800mm |
|
Panel thickness |
100mm / 120mm (optional) |
100mm / 120mm (optional) |
100mm |
|
Diameter of main saw blade |
φ380-400mm |
φ380-400mm |
φ380-400mm |
|
Inner hole of main saw blade |
Φ75mm |
Φ75mm |
Φ75mm |
|
Diameter of Auxiliary saw blade |
Φ200mm |
Φ200mm |
Φ200mm |
|
Inner hole of Auxiliary saw blade |
Φ50 |
Φ50 |
Φ50 |
|
Saw seat cutting speed |
0-80m/min |
0-80m/min |
0-80m/min |
|
Saw seat reverse speed |
0-100m/min |
0-100m/min |
0-100m/min |
|
Main saw drive motor |
15kw / 18.5kw (optional) |
15kw / 18.5kw (optional) |
15kw |
|
Auxiliary saw drive motor |
2.2kw |
2.2kw |
2.2kw |
|
Saw seat servo drive |
1.3kw high torque servo |
1.3kw high torque servo |
1.3kw high torque servo |
|
Feeding servo motor |
1.3kw high torque servo |
1.3kw high torque servo |
1.3kw high torque servo |
|
High pressure blower motor |
2.2kw |
2.2kw |
2.2kw |
|
Automatic feeding speed |
0-90m/min |
0-90m/min |
0-90m/min |
|
Working table height |
920mm |
920mm |
920mm |
|
Total power |
22kw |
22kw |
22kw |
|
Working voltage |
380V/50HZ |
380V/50HZ |
380V/50HZ |
|
Working pressure |
0.6-0.8Mpa |
0.6-0.8Mpa |
0.6-0.8Mpa |
|
Machine net weight |
About 5800kg |
About 5800kg |
About 5800kg |
Applications
There are two ways of panel sizing generally used in the timber industry, the CNC nesting machine and computer beam saws. The CNC panel saws are controlled by an industrial computer, which is quite advanced and easy to operate for the users. The computer beam saws are used to process straight and batch wood panels and sheets. It has more precise cutting with a smooth surface. ENOTOPP has over 12 years of experience in designing and manufacturing panel saws, and served customers globally. The computer beam saws have been widely used for making wooden furniture in timber plants and factories.
