ENOTOPP Customized and upgraded rear feeding computer beam saw 330H

5/5

Brand: ENOTOPP

Model: YZJ-330H

Payment Terms: T/T/Visa/Mastercard

Category: CNC panel saw, computer beam saw

After-sale Service: Free professional machine operation training.

Supply Ability: 30 Sets per Month

CNC panel saw video

Computer beam saw video

Description

ENOTOPP Customized and upgraded rear feeding computer beam saw 330 is tailor-made and developed according to customer needs, and is equipped with an upgraded version of the rear feeding lifting platform. Strong research and development capabilities ensure that we can meet customers’ special needs and provide customers with professional customized solutions.

ENOTOPP can provide customized machines according to your needs.

Please let us have your production and equipment requirements, we will tailor high-quality equipment for you.

Features

  • Electronic saw configuration parameters are exclusively customized according to customer needs;
  • Upgraded version of rear feeding lifting platform, higher configuration, better performance;

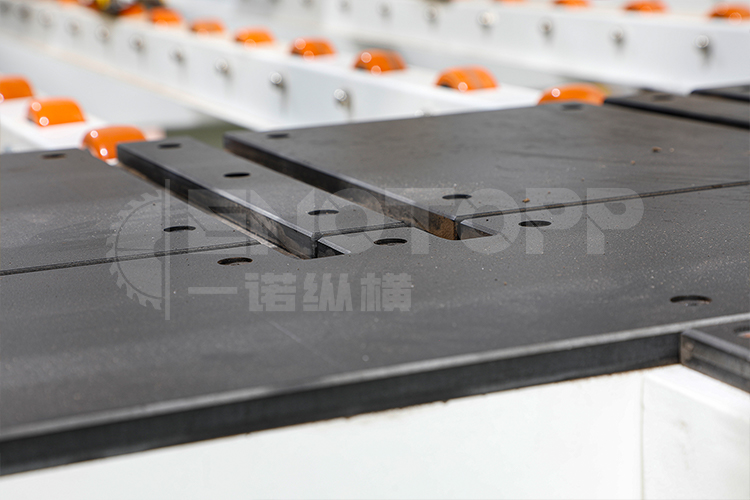

  • Customized 4 operating tabletops to meet the production needs of customers;
  • The racks are all in finishing structure, all to the ground. Stable without deformation, no vibration when sawing, ensuring perfect sawing effect.

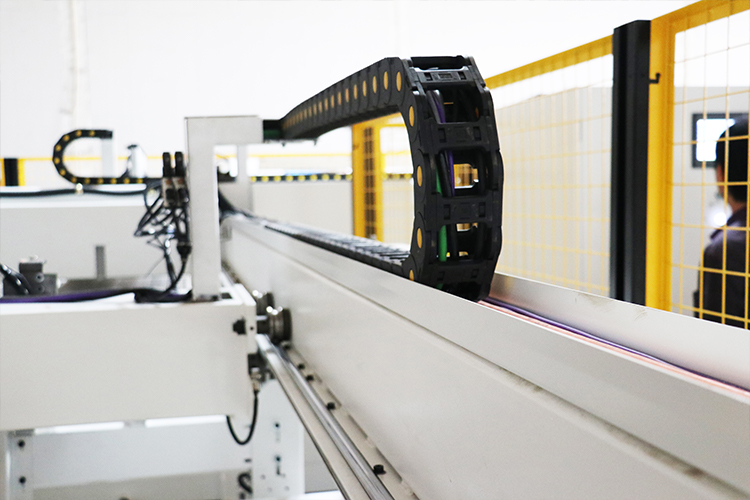

  • The main frame adopts a precision linear guide rail structure with high precision.
  • The left and right beams of the manipulator are welded into an I-shaped steel structure with thick steel plates. The movement adopts precision linear guide rails, which move smoothly and with high precision.

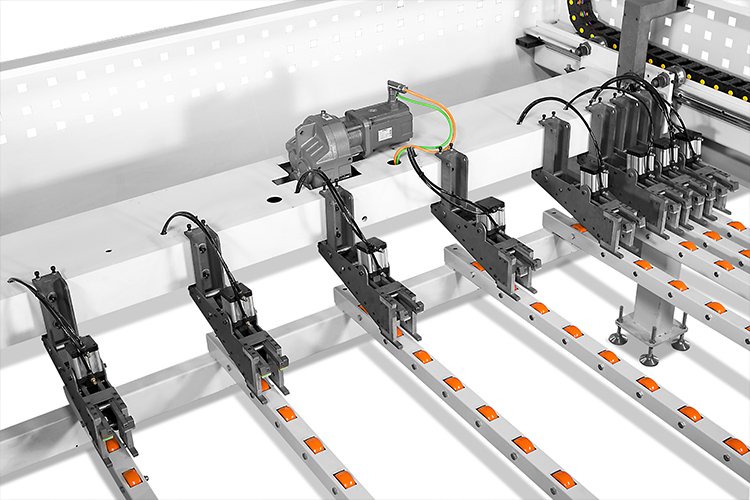

  • The clamping hand adopts a flat clamp, which has a strong grip and does not hurt the board.

Parameters

ITEMS
YZJ-380
YZJ-330
YZJ-280

Panel length

3800mm

3300mm

2800mm

Panel thickness

100mm / 120mm (optional)

100mm / 120mm (optional)

100mm

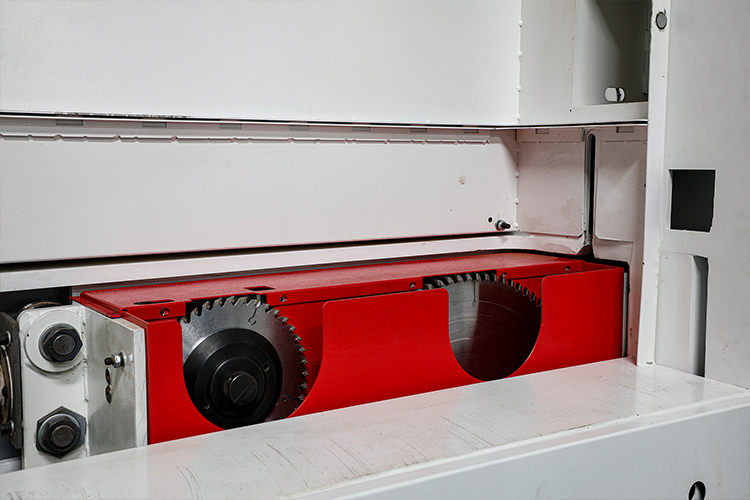

Diameter of main saw blade

φ380-400mm

φ380-400mm

φ380-400mm

Inner hole of main saw blade

Φ75mm

Φ75mm

Φ75mm

Diameter of Auxiliary saw blade

Φ200mm

Φ200mm

Φ200mm

Inner hole of Auxiliary saw blade

Φ50

Φ50

Φ50

Saw seat cutting speed

0-80m/min

0-80m/min

0-80m/min

Saw seat reverse speed

0-100m/min

0-100m/min

0-100m/min

Main saw drive motor

15kw / 18.5kw (optional)

15kw / 18.5kw (optional)

15kw

Auxiliary saw drive motor

2.2kw

2.2kw

2.2kw

Saw seat servo drive

1.3kw high torque servo

1.3kw high torque servo

1.3kw high torque servo

Feeding servo motor

1.3kw high torque servo

1.3kw high torque servo

1.3kw high torque servo

High pressure blower motor

2.2kw

2.2kw

2.2kw

Automatic feeding speed

0-90m/min

0-90m/min

0-90m/min

Working table height

920mm

920mm

920mm

Total power

22kw

22kw

22kw

Working voltage

380V/50HZ

380V/50HZ

380V/50HZ

Working pressure

0.6-0.8Mpa

0.6-0.8Mpa

0.6-0.8Mpa

Machine net weight

About 5800kg

About 5800kg

About 5800kg

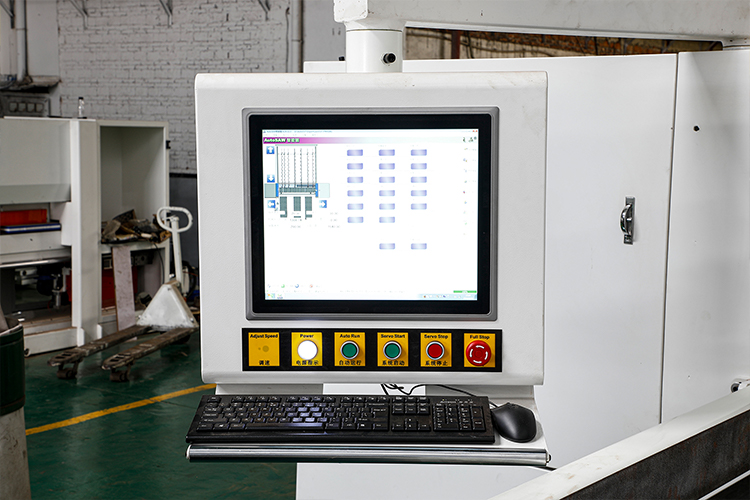

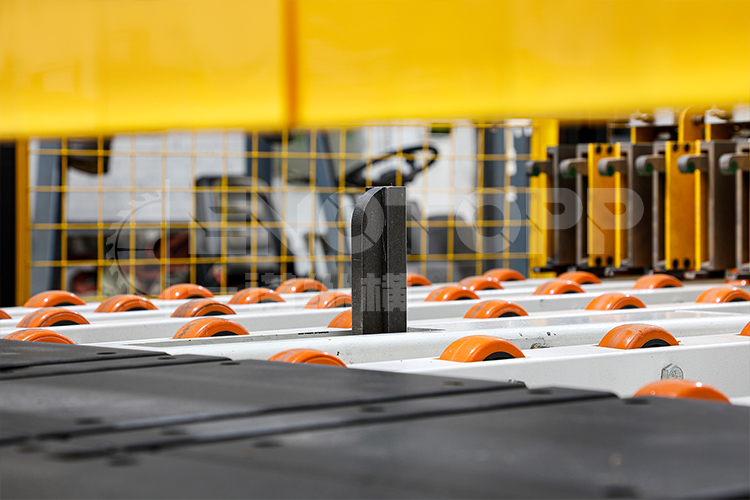

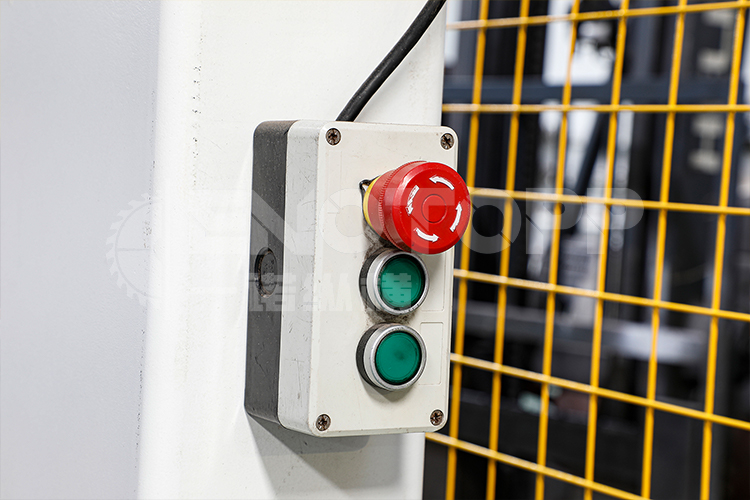

CNC panel saw machine details

Applications

There are two ways of panel sizing generally used in the timber industry, the CNC nesting machine and computer beam saws. The CNC panel saws are controlled by an industrial computer, which is quite advanced and easy to operate for the users. The computer beam saws are used to process straight and batch wood panels and sheets. It has more precise cutting with a smooth surface. ENOTOPP has over 12 years of experience in designing and manufacturing panel saws, and served customers globally. The computer beam saws have been widely used for making wooden furniture in timber plants and factories.
