post-feeding panel saw

ENOTOPP 330H/380H Post-feeding Computer Beam Saw for sale

5/5

Brand: ENOTOPP

Model: YZJ-330H/380H

Payment Terms: T/T/Visa/Mastercard

Category: CNC panel saw, computer beam saw

After-sale Service: Free professional machine operation training.

Supply Ability: 30 Sets per Month

CNC panel saw video

Computer beam saw video

Description

ENOTOPP 330H/380H Post-feeding Computer Beam Saw occupies a small area, saving time and space, and with a very competitive price.

ENOTOPP post-feeding panel saw the lifting platform is integrated into the rear area of ​​the cutting saw. Machine dimensions remain as compact as a single saw while output increases significantly. This is because the rear loading system feeds material from the rear forward through the saw, which is both efficient and ergonomic.

Features

  • Automatic post-feeding system, convenient feeding
  • Greater flexibility
  • Save time and space
  • Increase the output of cutting saws
  • Ideal for growing carpentry workshops and companies
  • Can be modified
  • The size model is 330/380, model 420 needs to be customized

Parameters

ITEMS
YZJ-380
YZJ-330
YZJ-280

Panel length

3800mm

3300mm

2800mm

Panel thickness

100mm / 120mm (optional)

100mm / 120mm (optional)

100mm

Diameter of main saw blade

φ380-400mm

φ380-400mm

φ380-400mm

Inner hole of main saw blade

Φ75mm

Φ75mm

Φ75mm

Diameter of Auxiliary saw blade

Φ200mm

Φ200mm

Φ200mm

Inner hole of Auxiliary saw blade

Φ50

Φ50

Φ50

Saw seat cutting speed

0-80m/min

0-80m/min

0-80m/min

Saw seat reverse speed

0-100m/min

0-100m/min

0-100m/min

Main saw drive motor

15kw / 18.5kw (optional)

15kw / 18.5kw (optional)

15kw

Auxiliary saw drive motor

2.2kw

2.2kw

2.2kw

Saw seat servo drive

1.3kw high torque servo

1.3kw high torque servo

1.3kw high torque servo

Feeding servo motor

1.3kw high torque servo

1.3kw high torque servo

1.3kw high torque servo

High pressure blower motor

2.2kw

2.2kw

2.2kw

Automatic feeding speed

0-90m/min

0-90m/min

0-90m/min

Working table height

920mm

920mm

920mm

Total power

22kw

22kw

22kw

Working voltage

380V/50HZ

380V/50HZ

380V/50HZ

Working pressure

0.6-0.8Mpa

0.6-0.8Mpa

0.6-0.8Mpa

Machine net weight

About 5800kg

About 5800kg

About 5800kg

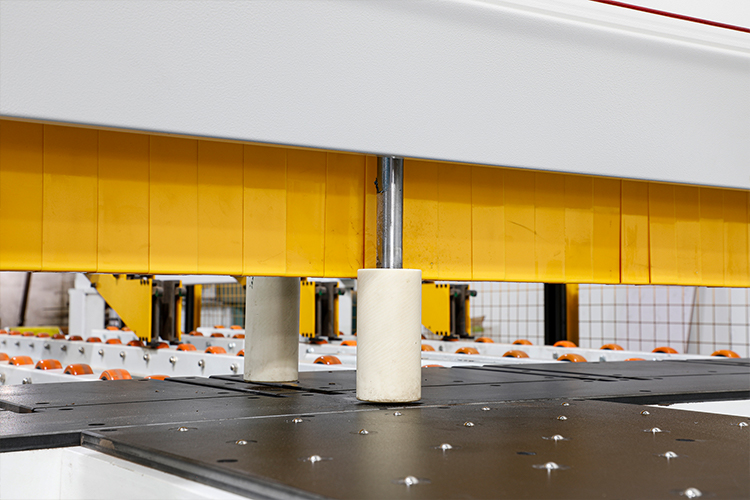

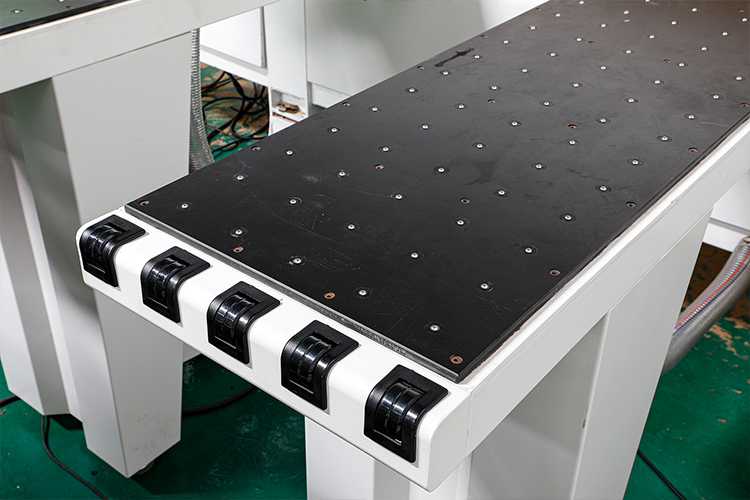

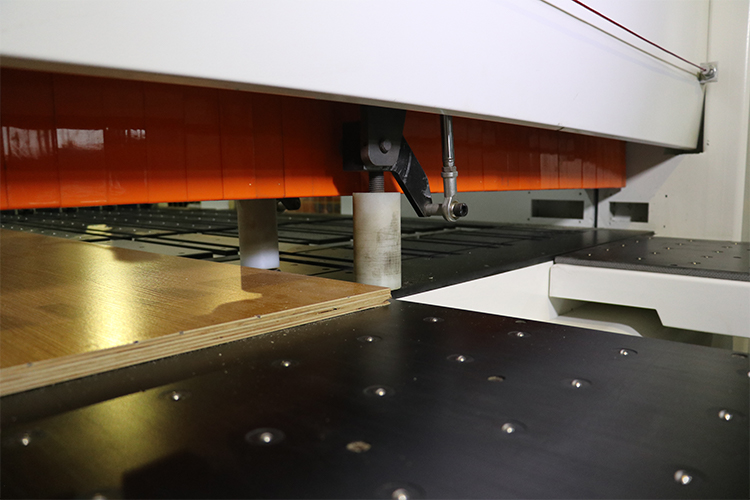

CNC panel saw machine details

Applications

There are two ways of panel sizing generally used in the timber industry, the CNC nesting machine and computer beam saws. The CNC panel saws are controlled by an industrial computer, which is quite advanced and easy to operate for the users. The computer beam saws are used to process straight and batch wood panels and sheets. It has more precise cutting with a smooth surface. ENOTOPP has over 12 years of experience in designing and manufacturing panel saws, and served customers globally. The computer beam saws have been widely used for making wooden furniture in timber plants and factories.
