ENOTOPP CNC 7 lines boring machine for massive production for sale

5/5

Brand: ENOTOPP

Model: YZZ7P6M-5201

Payment Terms: T/T/Visa/Mastercard

Category: drilling center, boring machine

After-sale Service: Free professional machine operation training.

Supply Ability: 30 Sets per Month

CNC automatic lines boring machine video

CNC automatic seven-row drilling machine video

Description

ENOTOPP woodworking CNC 7 lines boring machine is a fully servo controlled liens drilling machine, it is fast, accurate and stable with continuous automatic discharge, the CNC automatic seven-row drilling machine is widely used for the processing and production of drilling series furniture such as wardrobes, bookcases, offices, bathrooms, cabinets, etc.

Features

  • Servo drive of drill bag and drill shaft can work independently, multiple drill bags can be processed at the same time, and the tool can be automatically switched
  • Equipped with scanning code docking software, the system automatically recognizes barcode data, and realizes rapid production by scanning codes
  • Automatic positioning of the equipment system without manual adjustment
  • Suitable for six-sided drilling of panel furniture, through-type batch processing, and in-line production
  • Automatic positioning according to processing data, fast and accurate

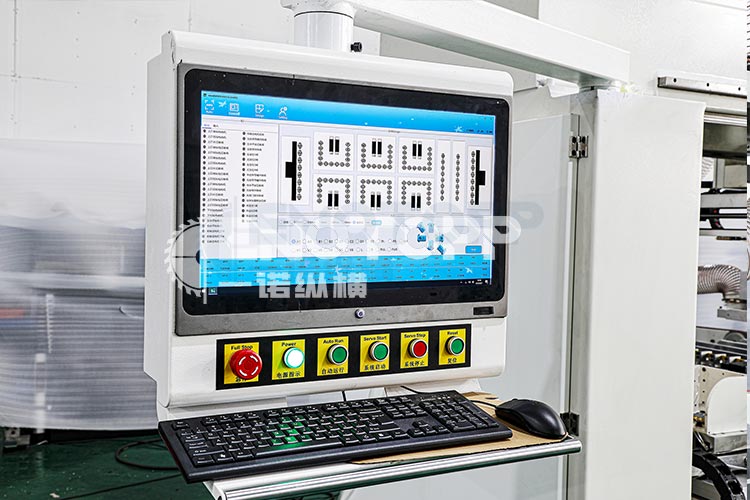

  • Intelligent industrial control operating system, support code scanning input/manual hole editing/connected production
  • >400×400-2200mm default veneer processing mode

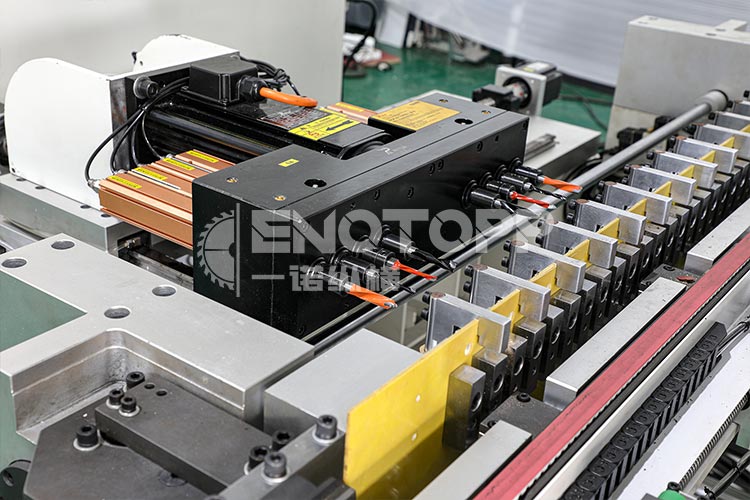

  • 4 sides + 2 sides + 2 bottoms, 10 sets of drill packs High-speed and precise six-sided drilling processing

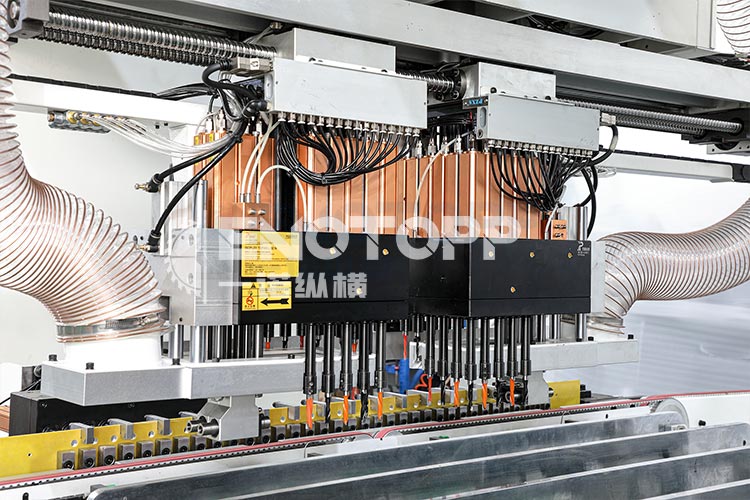

  • The top six groups of drill bags are all equipped with 9V+4H drill tips
  • The two groups of drill rows on the side are equipped with 4H drill nozzles, and the drilling distance is 32mm
  • <400×400-2200mm The default double plate processing at the same time, the fixture automatically recognizes and starts positioning

Parameters

Brand
ENOTOPP

Working width

120-1000mm

Working length

400-2500mm

Feed speed

35m/min

Working thickness

9-40mm

Upper vertical drill

14x3x2

Upper horizontal drill

2x3x2

Vertical drill

8 drills x2 bag

Horizontal drill

8 drills x2 bag

Max. long drill dimension

Φ15mm (optional per needs)

Feed motor power

0.37kwx6

Working air pressure

0.6-0.8mPa

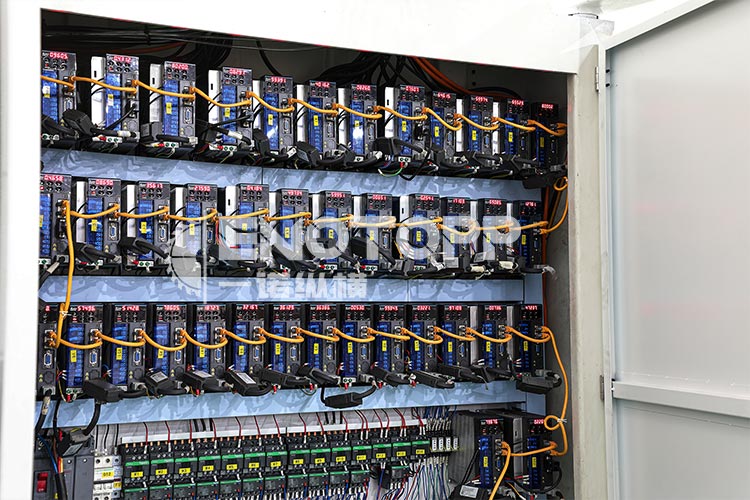

Servo motor

DELTA

System

Beckhoff

Drill bag

Protean

AC contactor

Schneider

Air switch / Relay

Schneider

Guide rail/gearbox

FASTON

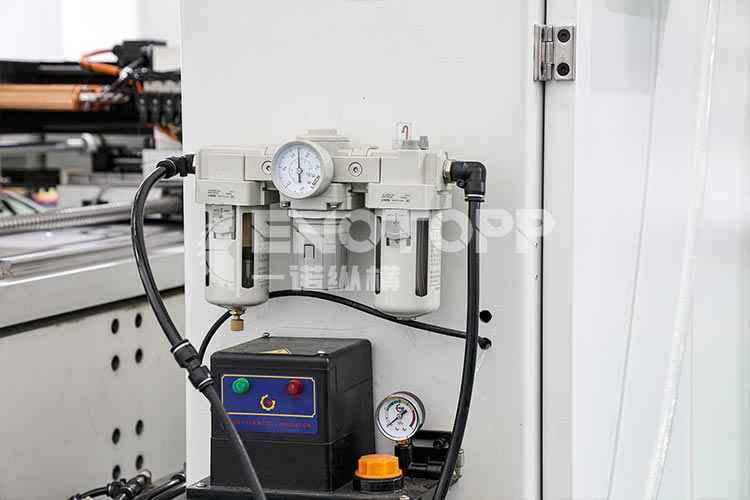

Pneumatic element

Airtac

PLC

DELTA

triad

Airtac

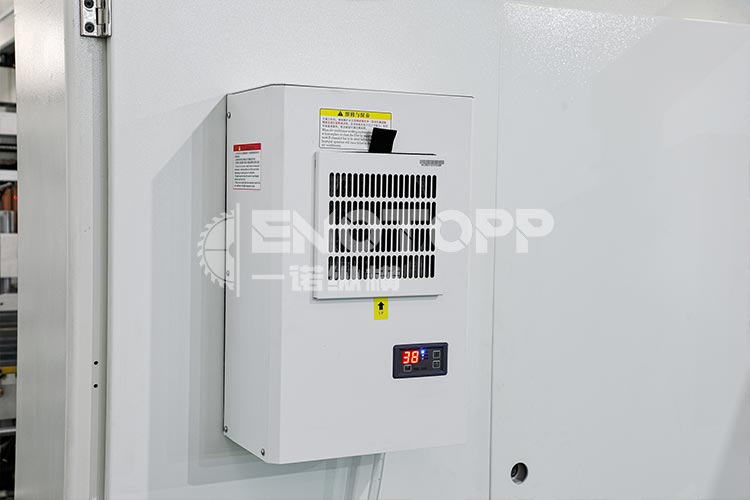

Air conditioner

Shanghai Jingying

Machine size

L5500*W3050*H2600mm

Container size

L5500*W2100*H2510

Total power

54.67kw

CNC Drilling Machine Details

Applications

The CNC drilling machine is also called as CNC boring machine, it is widely used in panel wood processing. Its main function is drilling, milling, grooving etc. the CNC drilling machine can process 6-sided drilling in the same time, no need to turn the panels manually. The final products of this machine are wooden furniture like doors, drawers, cabinets, table etc.
